How to Add and Create XML Sitemaps

Sarah Yoon
  • Updated

Lumar allows users to crawl XML Sitemap URLs and any URLs found in a Sitemap file. To add XML Sitemaps to a new crawl project follow these instructions:

Start a New Crawl Project

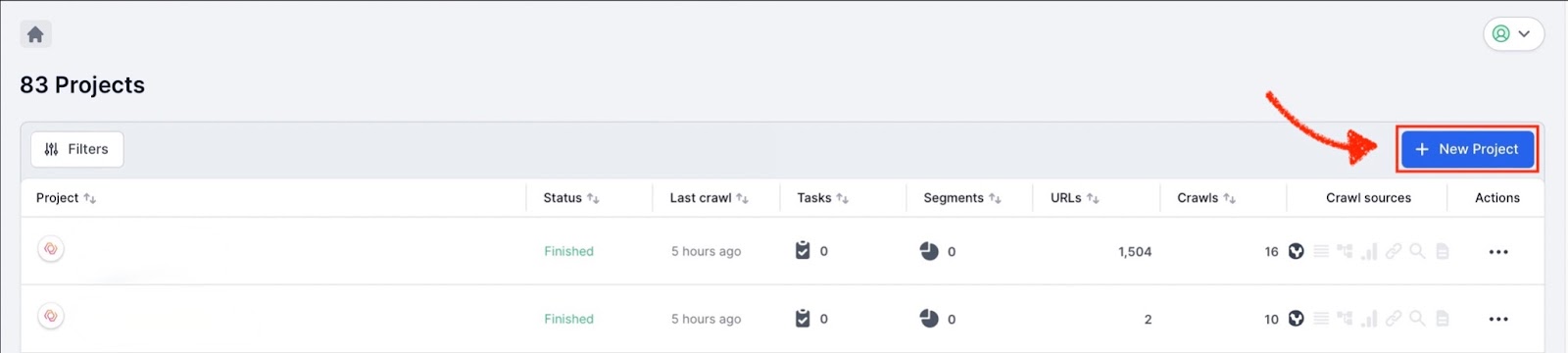

Create a new crawl project in Lumar.

How to Add and Create XML Sitemaps1.jpeg

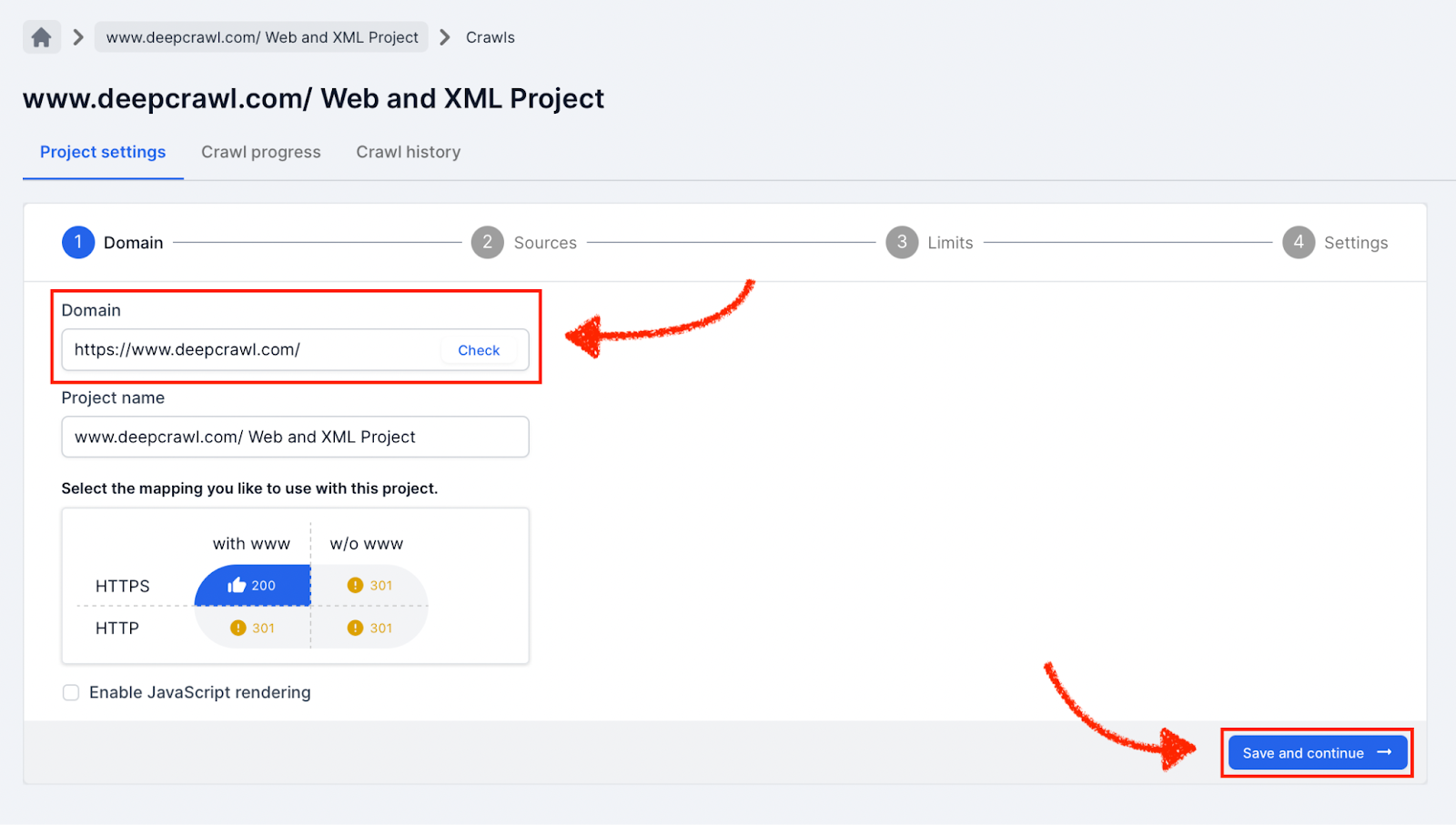

Enter the primary domain where the XML Sitemap files are located and name the project (enable JavaScript rendering if you want to use the Page Rendering Service).

How to Add and Create XML Sitemaps2.png



Source Settings

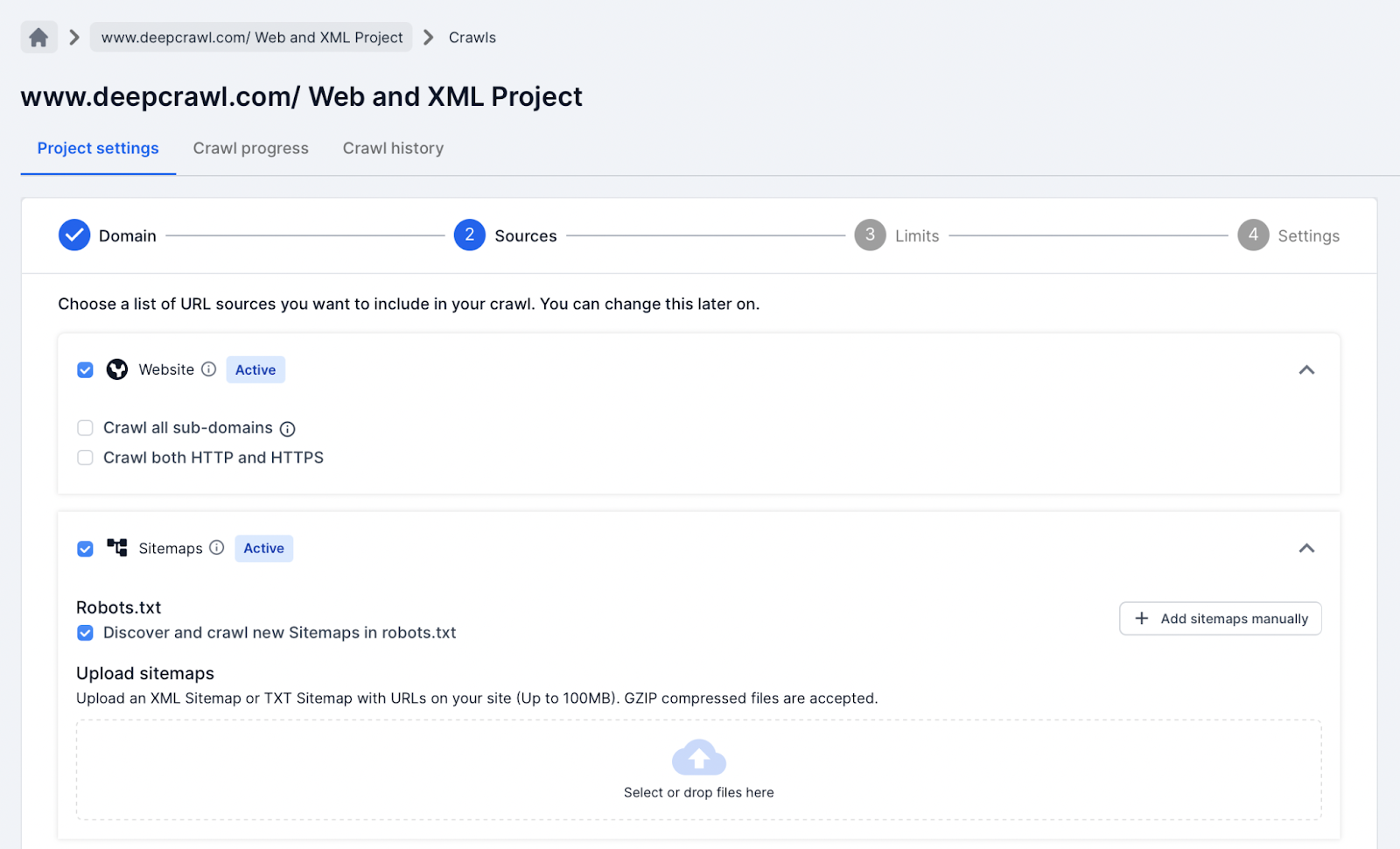

In the Sources settings select the Sitemaps option. By default Lumar discovers and crawls XML Sitemaps using the /robots.txt file.

How to Add and Create XML Sitemaps3.png



How to Add XML Sitemaps to Lumar

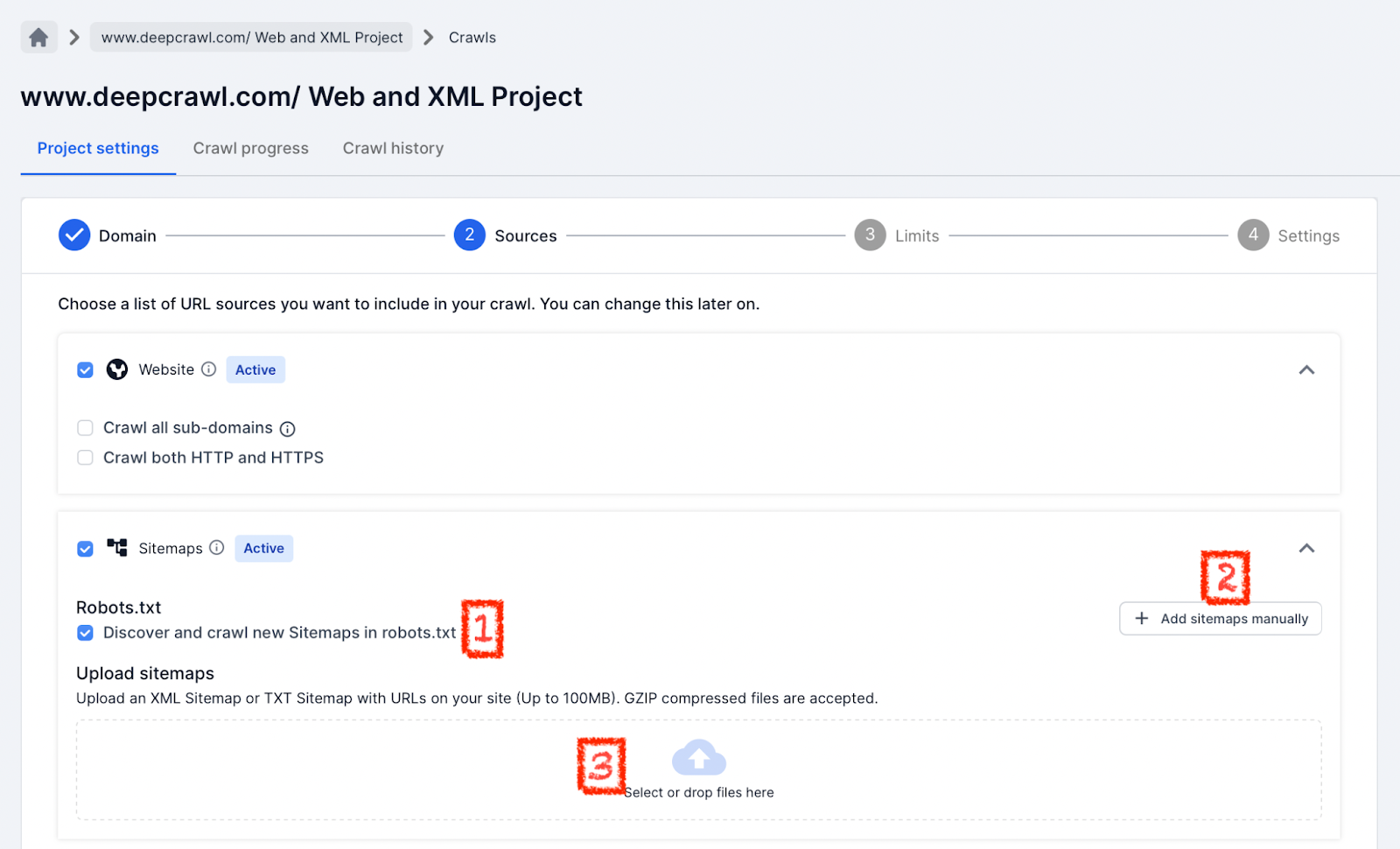

When adding Sitemaps to a crawl project, there are a number of options which helps Lumar discover Sitemap URLs:

  1. XML Sitemaps referenced in the /robots.txt file (this is done by default).
  2. Manually copy and paste XML Sitemap URLs into Lumar.
  3. Manually upload .xml or .txt files into Lumar.

How to Add and Create XML Sitemaps4.png



Discover XML Sitemaps Found in Robots.txt File

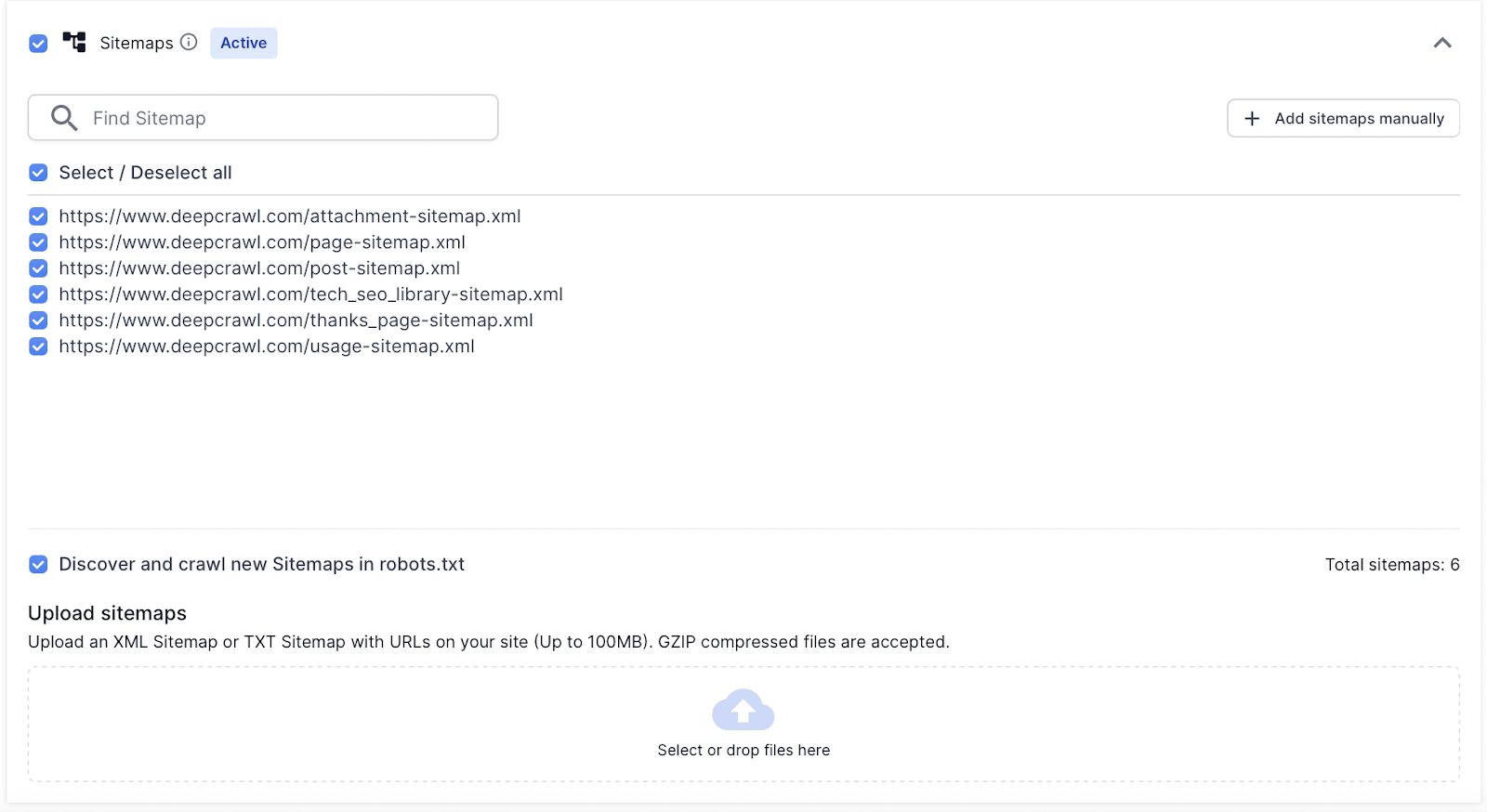

By default, Lumar will discover any XML Sitemap URL in a /robots.txt file when selecting the Sitemaps data source.

How to Add and Create XML Sitemaps5.png



This means that any Sitemap URLs found in the /robots.txt will be automatically pulled into the list of Sitemaps Lumar will crawl.

For example the following /robots.txt file:

User-agent: *

Sitemap: https://www.example.com/sitemap_index.xml

Lumar would discover the Sitemap Index and crawl all the XML Sitemaps contained within that file. Any Sitemaps not included within that Sitemap Index would not be discovered and crawled by Lumar in this example.

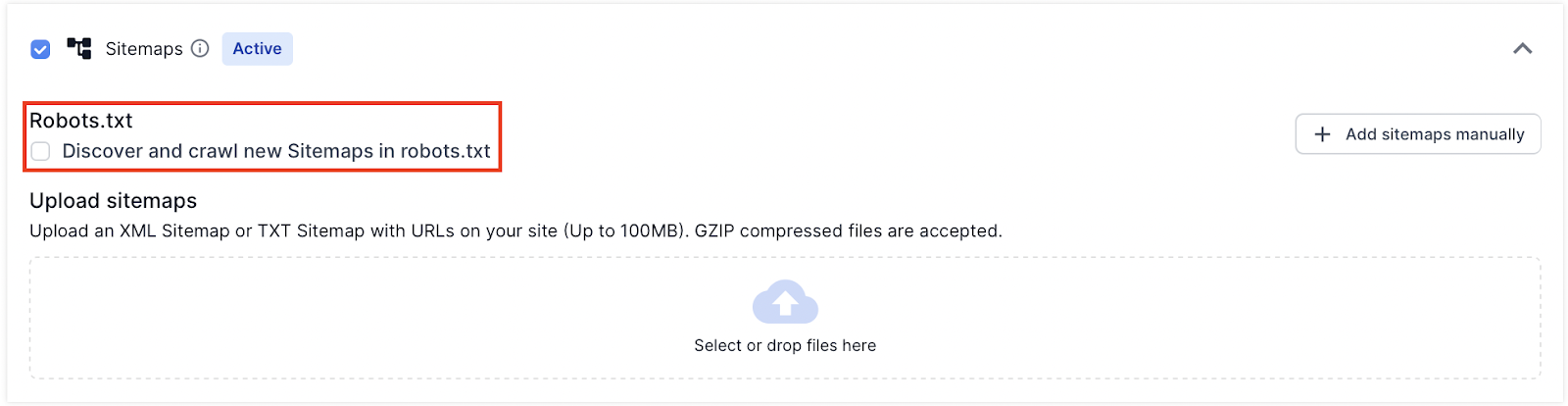

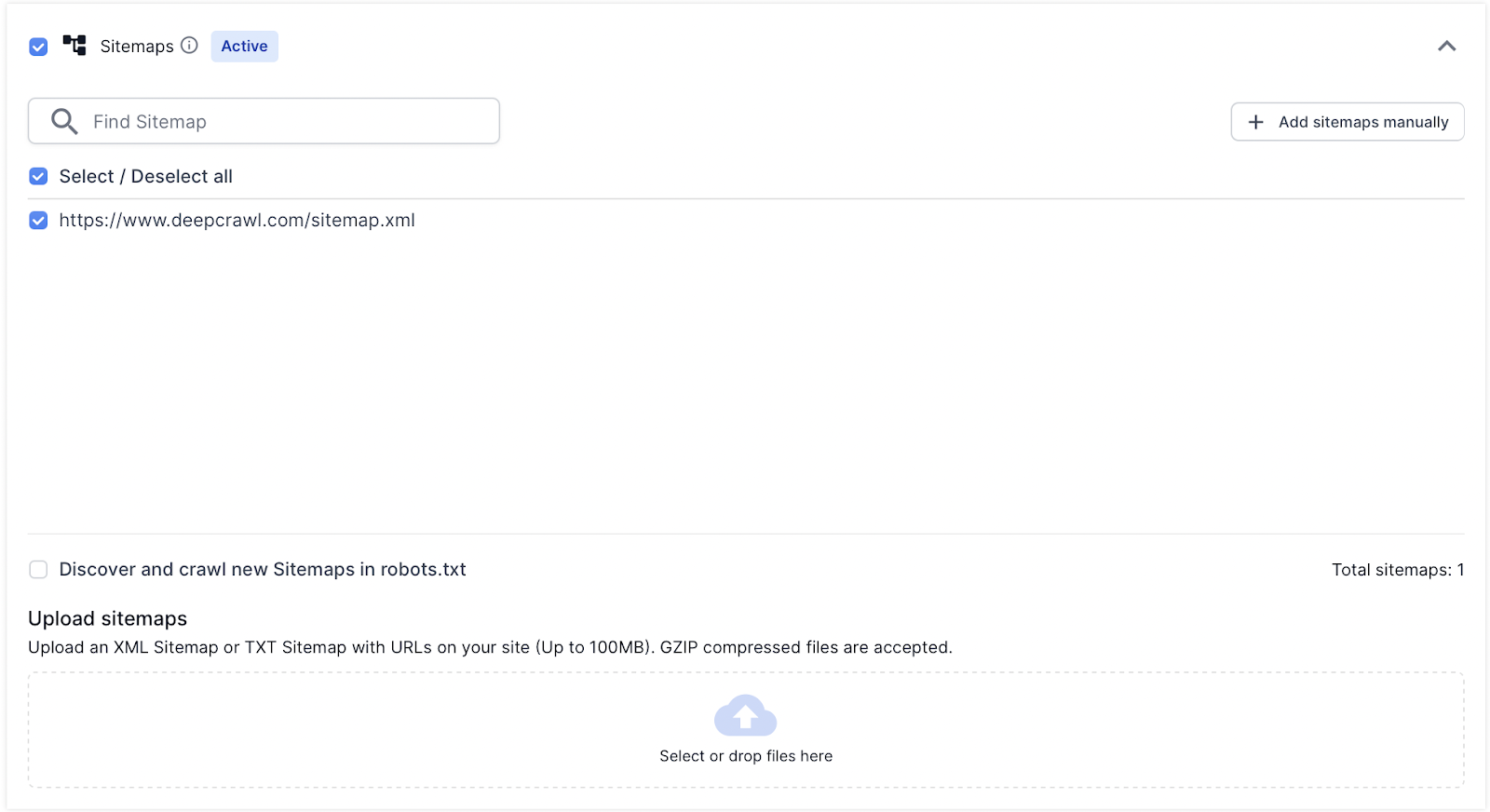

If you do not want Lumar to discover XML Sitemaps in the robots.txt file in future crawls then unselect it in the Sources settings.

How to Add and Create XML Sitemaps6.png



Remember to deselect the Sitemaps found in the /robots.txt, as they are not automatically deselected when deselecting the robots.txt option.

Add XML Sitemap URLs Manually

If XML Sitemaps cannot be found in the /robots.txt, then they can be added into Lumar manually.

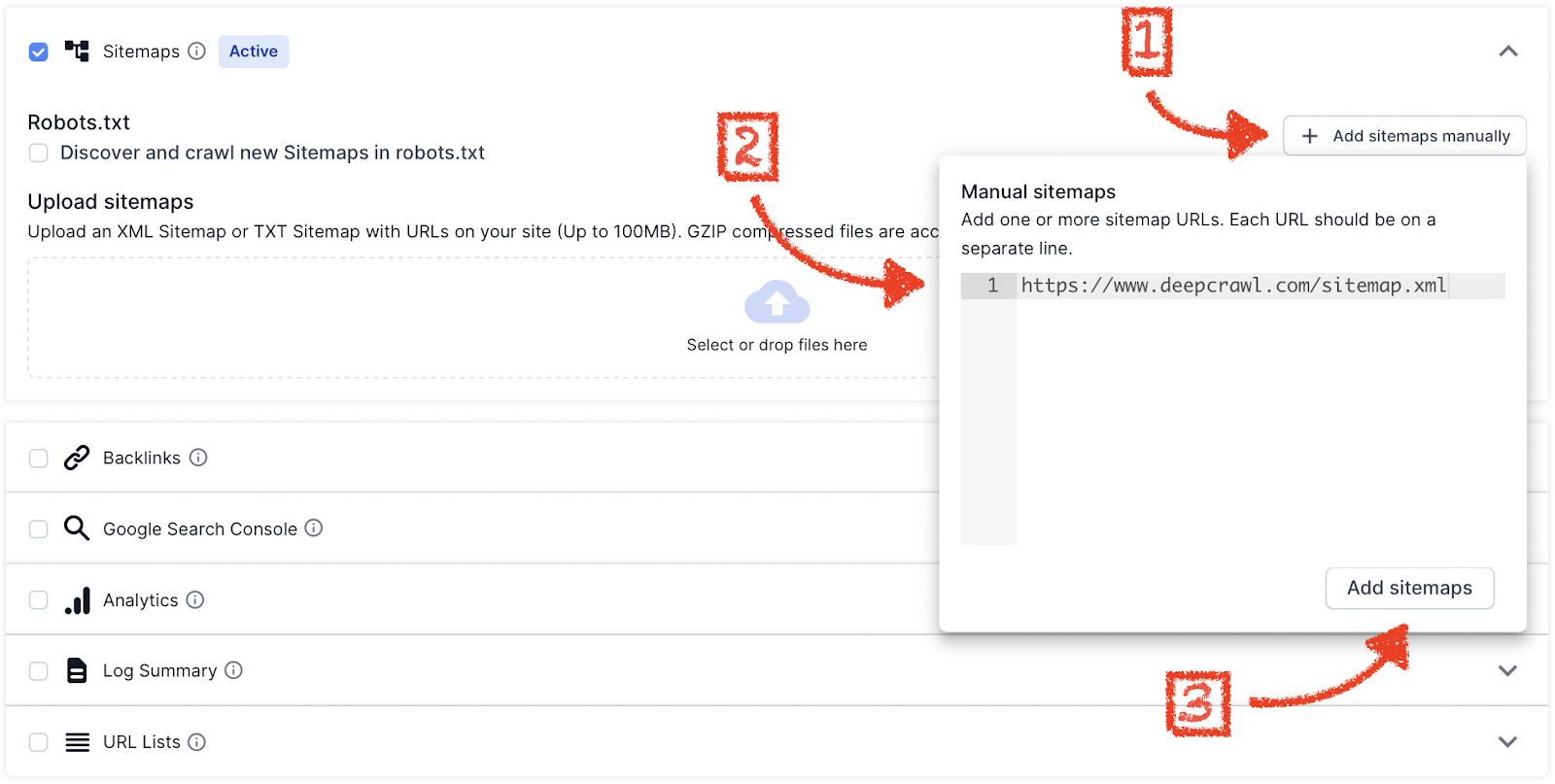

To add Sitemaps manually to Lumar:

  1. Create a list of all your XML Sitemaps.
  2. Copy all the XML Sitemap URLs and paste them into the input box.
  3. Click Add Sitemaps.

How to Add and Create XML Sitemaps7.png



When the new Sitemaps are added manually, they will be added to the list of XML Sitemaps which Lumar will discover and crawl.

How to Add and Create XML Sitemaps8.png



Once a list has been generated, Lumar also gives you the option to select or deselect the files from being crawled in the project.

How to Add and Create XML Sitemaps9.png



This is useful if you don’t want to crawl every single Sitemap uploaded.

Upload Sitemaps

Lumar gives the option to manually upload .xml and .txt files, which can be used as XML Sitemaps.

This option is very useful if web development and technical SEO teams who wish to test Sitemaps before they go live.

To upload a .xml or .txt file:

  1. Create a list of URLs you want to include in the .xml or .txt Sitemap.
  2. Create an XML Sitemap file or .txt file and include the URLs you want crawled by search engines (follow the Sitemap best practices guidelines).
  3. Upload the Sitemap file to Lumar (no more than 100MB per file upload and Lumar accepts gzipped compressed files).

Once a file is uploaded, Lumar will display the Sitemap file names and file extensions in a list.

How to Add and Create XML Sitemaps10.png

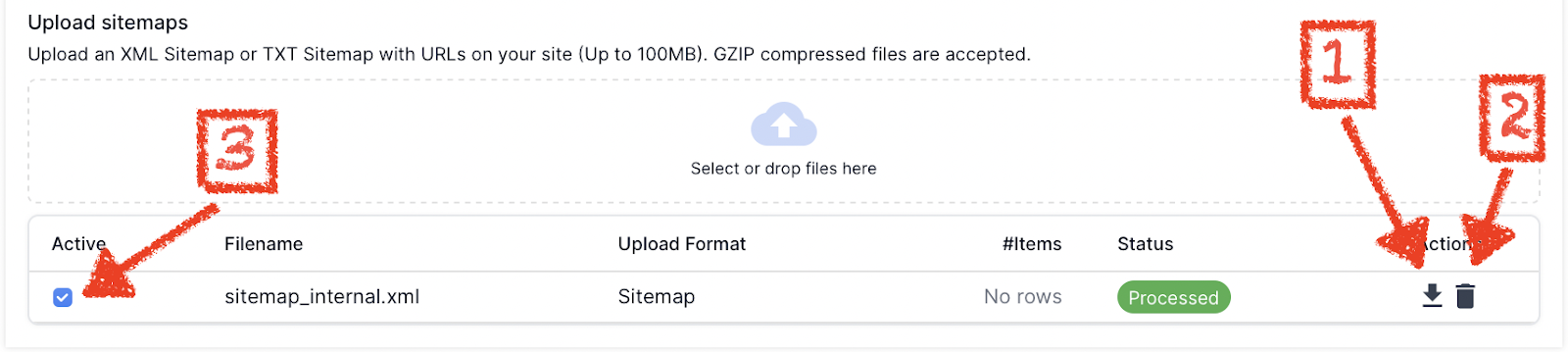

Lumar allows you to edit this list of uploaded files, from the Source settings you can:

  1. Download the file to make sure the contents are correct.
  2. Delete the file in case the wrong file was uploaded.
  3. Deselect the file from being crawled in the project.

Configure Crawl Limits and Advanced Settings

Once the XML Sitemaps have been added to the crawl project, then save and continue and configure the crawl limits and advanced settings.

Hit save, start the crawl and wait for the project to finalise to see XML Sitemap data included in the crawl.

Summary

Sitemaps can be added to new projects and can be uploaded in multiple different ways. When adding XML Sitemaps to a project:

  1. Start a new crawl project.
  2. Select Sitemaps in the Sources settings in a project, as well as other data sources.
  3. Choose which option to add an XML Sitemap (manual, file upload or through robots.txt).
  4. Save the Sources settings and configure the crawl limits and advanced settings.



Generating XML Sitemaps in Lumar

Lumar can be used to generate XML Sitemaps for pages which have been discovered and crawled.

Selecting Which Pages to Include

Navigate to the crawl project that the XML Sitemap will be generated from.

Go to the All Pages report and apply filters to get a list of pages you want to include in the XML Sitemap.

How to Add and Create XML Sitemaps11.png



For example, the following filters would segment URLs which were live, indexable and only found in the web crawl. When filtering, please be aware of the current best practice guidelines:

  • Only include URLs which can be crawled and indexed by search engines.
  • Only include the canonical URL of a page.
  • Do not include broken or redirected URLs.
  • Do not include canonicalized or noindex pages.

Selecting pages is important if you are creating a Sitemap to help improve the crawling and indexing of your website.



Breaking Down Large Sitemaps

A Sitemap file must have no more than 50,000 URLs or be larger than 50MB in size. When selecting URLs to be included in a Sitemap, please make sure that these size limits are not exceeded. Break up large groups of pages into smaller Sitemaps if necessary.

For example, rather than creating a large website XML Sitemap in just one file, break down the Sitemaps by website directories (URL):



https://www.example.com/sitemap_bathrooms.xml



https://www.example.com/sitemap_kitchens.xml



https://www.example.com/sitemap_bedrooms.xml

https://www.example.com/sitemap_garden.xml

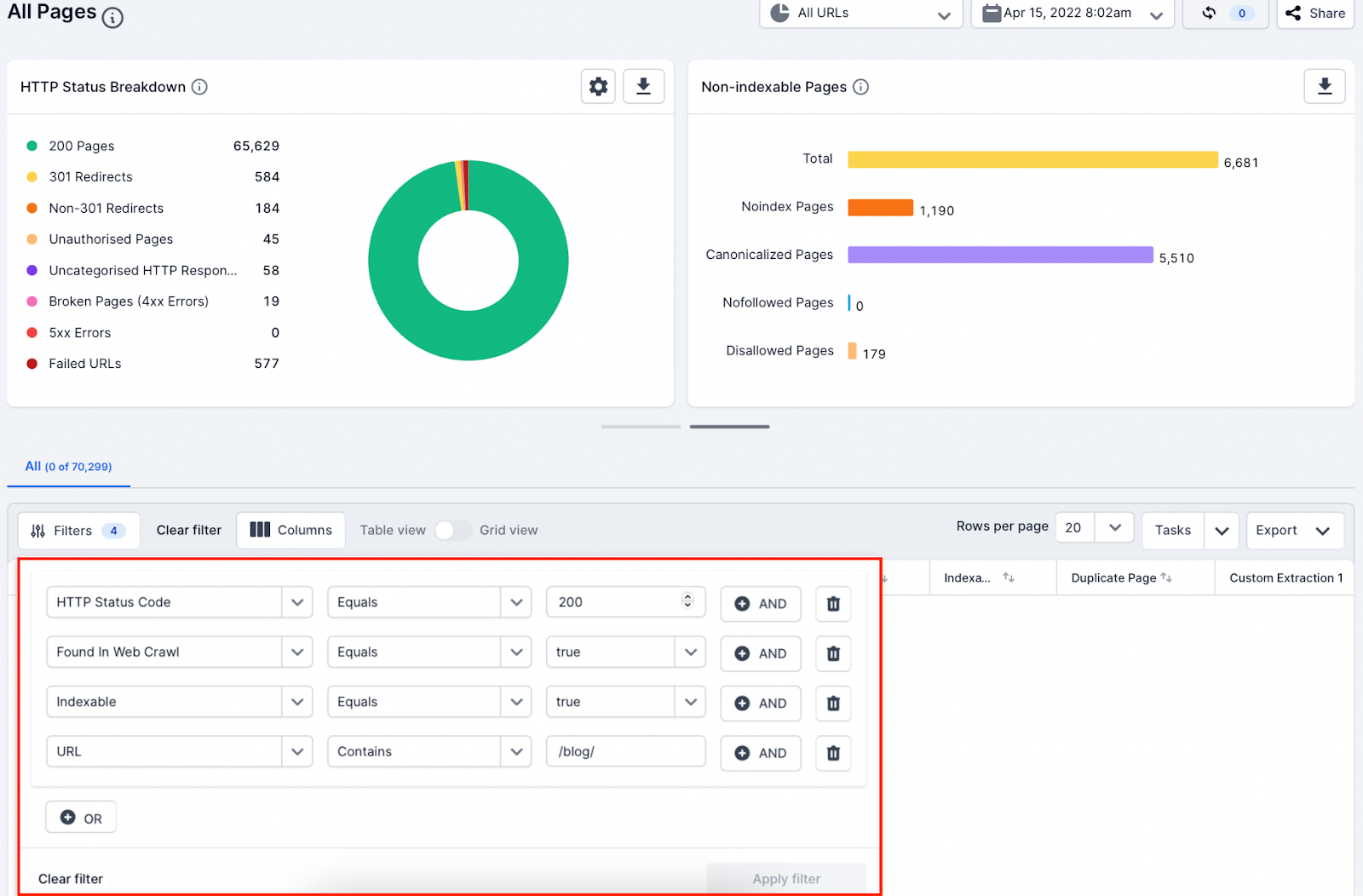

This can be done by using the filter in Lumar to only include pages with a specific URL path.

How to Add and Create XML Sitemaps12.png



Breaking down Sitemaps and submitting them to Google Search Console is a great way to understand indexability issues across a large website better.

How to Add and Create XML Sitemaps13.png



Generate the XML Sitemap

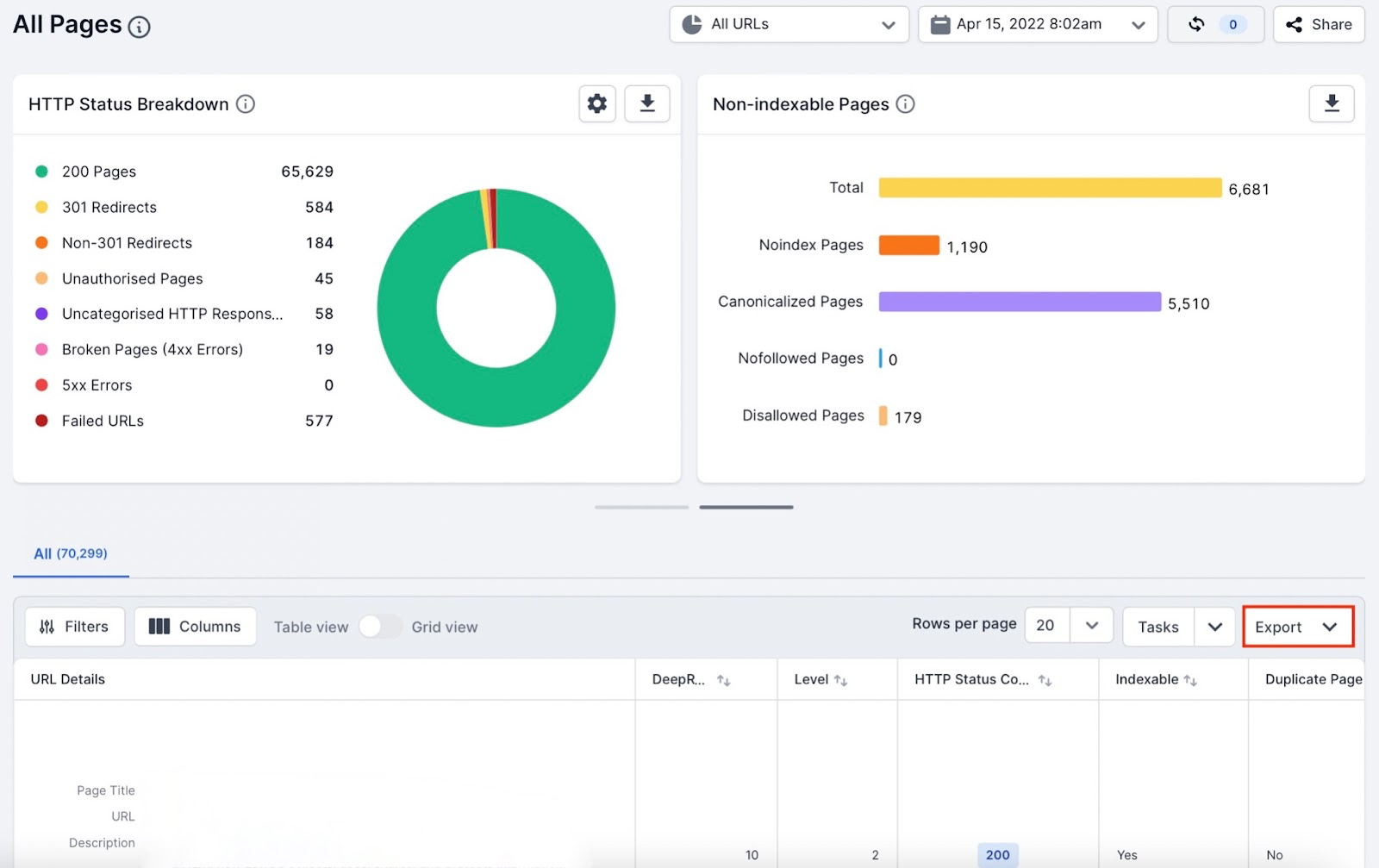

Once you have decided on what URLs to include in the XML Sitemap using the filter, click on the export drop down menu on the right of the report.

How to Add and Create XML Sitemaps14.png



This export drop down menu will show two options. Click on the “Generate XML Sitemap” option.

How to Add and Create XML Sitemaps15.png



Once clicked you will see “Available Files” and the XML file loading and, when finished, you will see the downloadable file.

How to Add and Create XML Sitemaps16.png



Generated Lumar Sitemap Format

Lumar generates an XML Sitemap using the Sitemap protocol standard. It only populates the required XML tags in the protocol:

  • url set
  • url
  • loc

At the moment Lumar cannot populate the lastmodified, changefreq or priority XML tags (these are optional and not required). It can also not generate news, image, or video Sitemaps at this time. For now, Lumar can only be used to generate Sitemaps for HTML web pages.



Summary

Lumar can be used to generate XML Sitemaps with URLs from any of our 250+ reports. It is important to remember that for any generated Sitemap file to be valid it needs to follow the Sitemap protocol standard for file size limits (50,000 URLs or 50MB).
